Build Log:

Fallout New Vegas

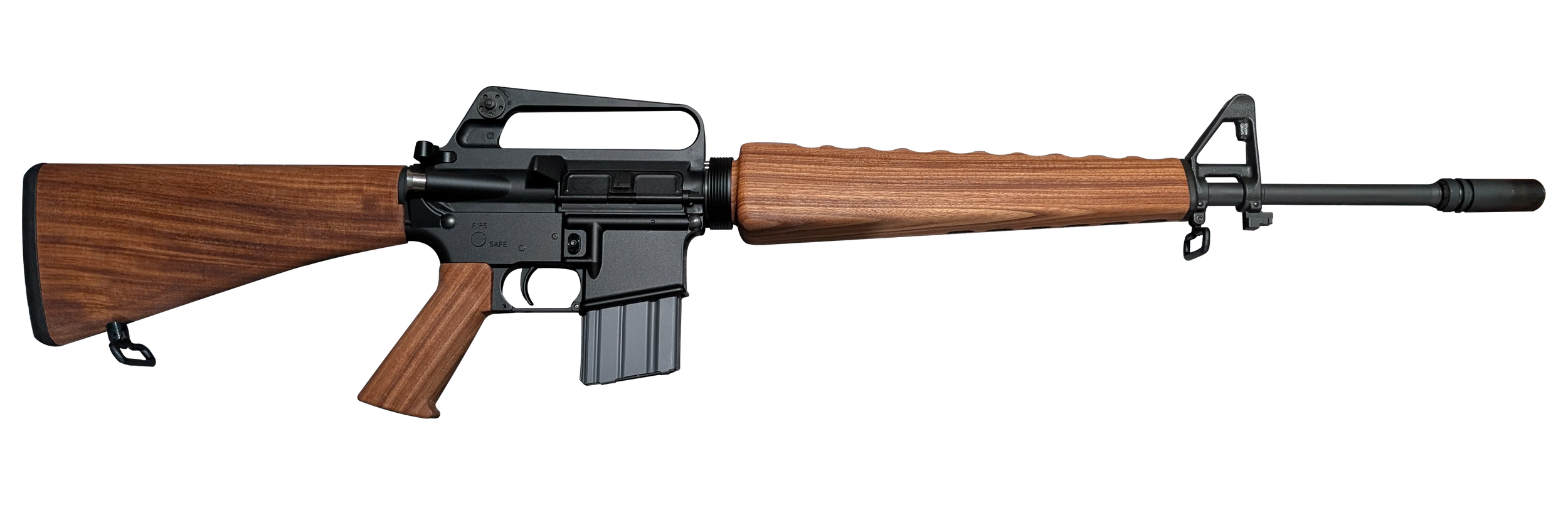

NCR Service Rifle

A pre-War lightweight, air-cooled, magazine-fed, gas-operated rifle that uses the direct impingement gas principle with a rotary bolt locking mechanism. Its simplistic assembly design allows for each unit to be easily broken down for cleaning or replacing with a new unit as well as for mass production in times of large-scale military response.

By 2281, the weapon has become the standard-issue armament of the New California Republic Army, with technical and maintenance support provided by the Gun Runners.

Caliber - 5.56x45 NATO / .223 Remington

Overall Length - 39 Inches / 99cm

Weight - 7.25 LBS / 4.65 Kg

Notes: Loaded - 20 Round Magazine

Parts Specifications:

Barrel

M16A1 Barrel Assembly

Length - 20 Inches

Profile - Pencil

1:7 Rifling Twist

Rifle Barrel Extension

Manufacturer - Harrington & Richardson

Notes: Chrome bore; 1/2x28 Thread

Muzzle Device‍

Custom Modified Muzzle Device

Manufacturer - FRM

Notes: 5.56; 1/2x28 Thread

Gas Tube

Rifle Length Gas Tube

‍Manufacturer - Palmetto State Armory

Upper Receiver‍

C7 Complete Upper Receiver‍

Rifle Feed Ramps

‍Manufacturer - Luth-AR

Forward Assist

Stainless Steel Forward Assist

‍Manufacturer - R1 Tactical

Notes: To match in-game rifle

Charging Handle

Milspec AR-15 Charging Handle

‍Manufacturer - Palmetto State Armory

Bolt Carrier Group

5.56 Phosphate MPI Full-Auto Bolt Carrier Group

Manufacturer - Toolcraft

Notes: Chrome Lined Gas Key; Hardened to USGI Specifications

Handguard

Mahogany A1 Handguard

Manufacturer - AmericanIcon

Lower Receiver‍

Stealth Lower Receiver

Manufacturer - Palmetto State Armory

Notes: A2 Profile

Fire Control Group

Milspec Fire Control Group

Manufacturer - KAK Industry

Notes: Silver Trigger to match in-game rifle; Safe, Semi-Auto.

Lower Parts Kit

AR-15 Milspec Lower Parts Kit

Manufacturer - KAK Industry

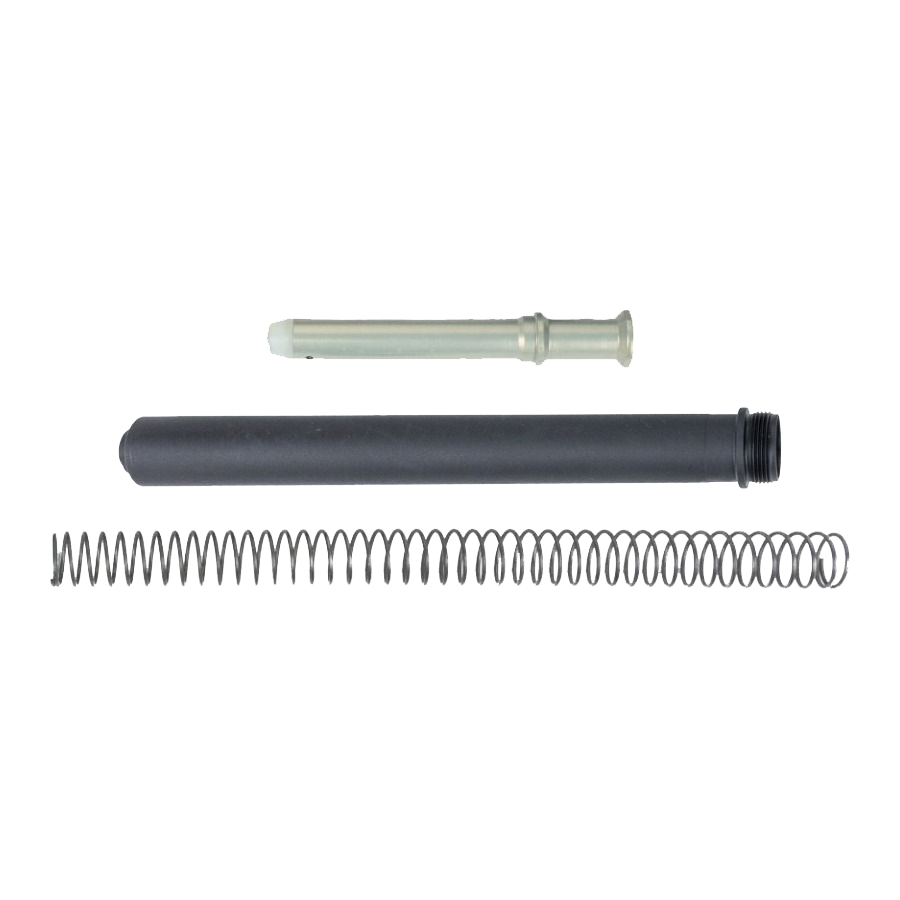

Receiver Extension Assembly

Rifle Length Buffer Tube

Rifle Length Buffer Spring

Rifle Length Buffer

Manufacturer - LUTH AR

Notes: Buffer Weight: 5.1 oz

Pistol Grip‍

Mahogany A1 Grip

Manufacturer - AmericanIcon

Stock‍

Mahogany A1 Stock

Manufacturer - AmericanIcon

Stock Screw

A1 Length Stock Screw

Manufacturer - Linemount

Magazine

USGI Style 20-Round Magazine

Manufacturer - Mora Arms

Attachments / Accessories

Sling

M1 Nylon Sling in Coyote

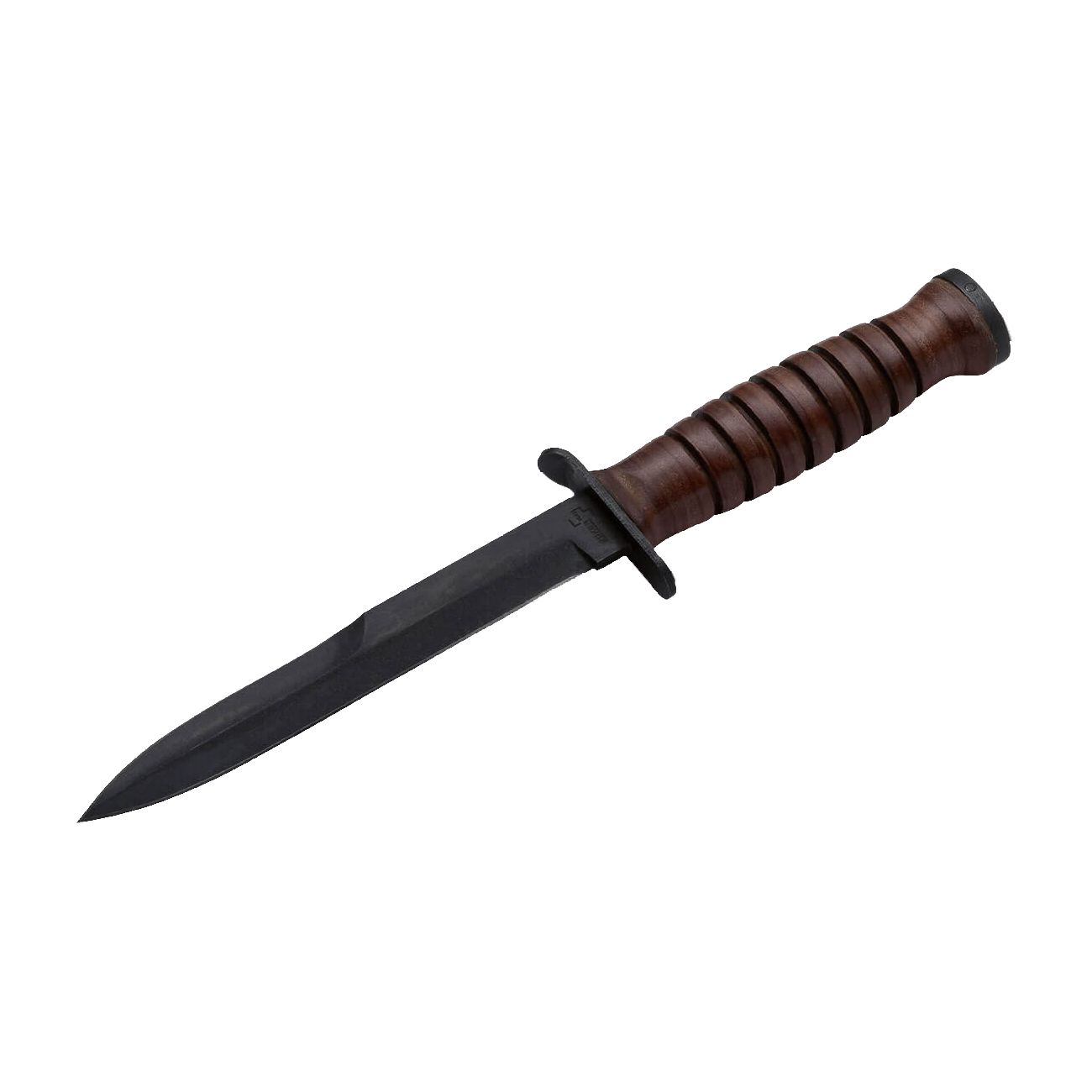

Knife

Boker M3 Trench Knife

Knife Scabbard

M6 Leather Scabbard

Tools Used / Recommended Tools

Bench Vice

Notes: Needed for holding receivers in place during assembly.

Upper Receiver Rod

Notes: Keeps barrel secure while torquing barrel nut(very important), installing muzzle devices and keeps upper receiver stable while installing sights/optics.

Handguard Tool

Notes: Makes install & removal of handguards far easier on rifles with Slip & Delta rings.

Lower Receiver Vise Block

AR-15 Armorer's Wrench

Notes: Needed for barrel nut and buffer tube installs, helps with muzzle devices that are compatible.

Torque Wrench

Notes: Needed for installation of barrel nut.

Pin Starter Punch Set

Notes: Helps with installing trickier roll pins such as bolt catch or trigger guard.

Pin Punch Set

Center Punch Set

Notes: Needed for staking endplates / castle nuts on carbine buffer tubes.

Takedown Pin Install Tool

Notes: Greatly decreases the difficulty of installing front takedown pins without losing detents / springs.

3/16" Hex T-Handle Wrench

Notes: Allows easy access for removal & installation of pistol grips ensuring proper torque for installation.

Snap Ring Pliers

Notes: Needed for indexing snap ring that holds Slip / Delta ring while installing gas tube into upper receiver on milspec barrel nuts.

5.56 NATO Headspace Gauges

Notes: Used for ensuring proper chamber headspace between your bolt and barrel.

A list of parts and tools used can be found below. For those who want to build their own NCR Service Rifle.
