Build Log:

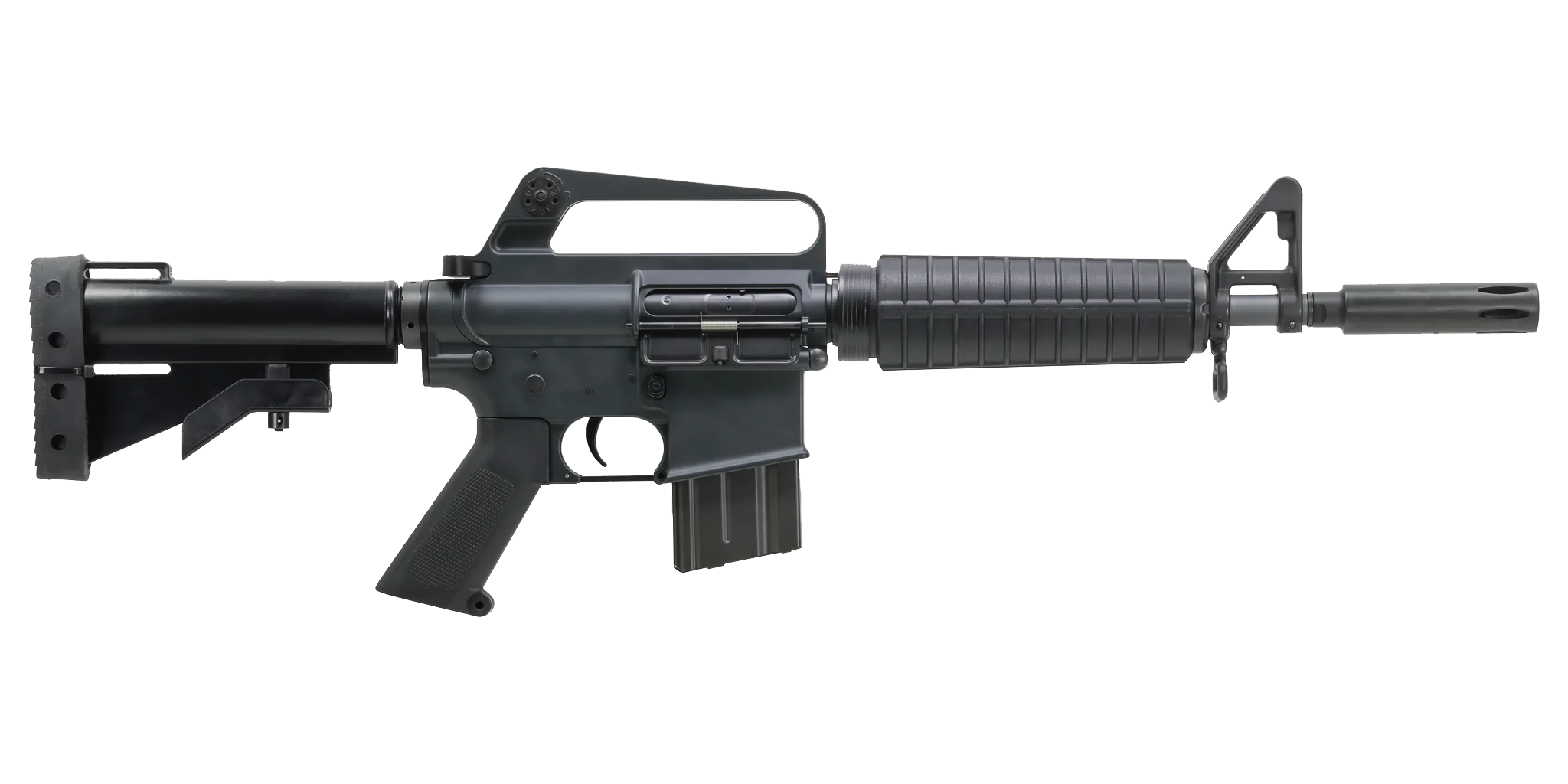

XM177E1 - Replica

Model 609

The Colt Automatic Rifle or CAR-15 is a family of M16 rifle–based firearms that was marketed by Colt in the 1960s and early 1970s. However, the term "CAR-15" is most commonly associated with the Colt Commando/XM177.

Caliber - 5.56x45 NATO / .223 Remington

Overall Length - 33 Inches / 83.82cm

Weight - 8 LBS / 3.62 Kg

Notes: Loaded - 30 Round Magazine, Sling & Light

Parts Specifications:

Barrel

10.5" Carbine Barrel Assembly

Length - 10.5 Inches

Profile - Government

1:7 Rifling Twist

Manufacturer - Palmetto State Armory

Notes: 1/2x28 Thread

Muzzle Device‍

XM177 Flash Hider

Manufacturer - Linemount

Notes: 1/2x28 Thread

Gas Tube‍

Carbine Length Gas Tube

‍Manufacturer - Palmetto State Armory

Upper Receiver‍

M16A1 Complete Upper Receiver‍

‍Manufacturer - LUTH AR

Charging Handle

Milspec AR-15 Charging Handle

‍Manufacturer - Palmetto State Armory

Bolt Carrier Group

5.56 Phosphate MPI Full-Auto Bolt Carrier Group

Manufacturer - Toolcraft

Notes: Chrome Lined Gas Key; Hardened to USGI Specifications

Handguard

XM177 Handguard

Manufacturer - Linemount

Lower Receiver‍

Stealth Lower Receiver

Manufacturer - Palmetto State Armory

Notes: A2 Profile

Fire Control Group

ARC Fire 3-Position Fire Control Group

Manufacturer - AS Designs

Notes: Safe, Semi-Auto, Full Semi-Auto

Lower Parts Kit

AR-15 Milspec Lower Parts Kit

Manufacturer - KAK Industry

Receiver Extension

Carbine Length Buffer Tube

Carbine Length Buffer Spring

Manufacturer - Palmetto State Armory

Buffer Weight

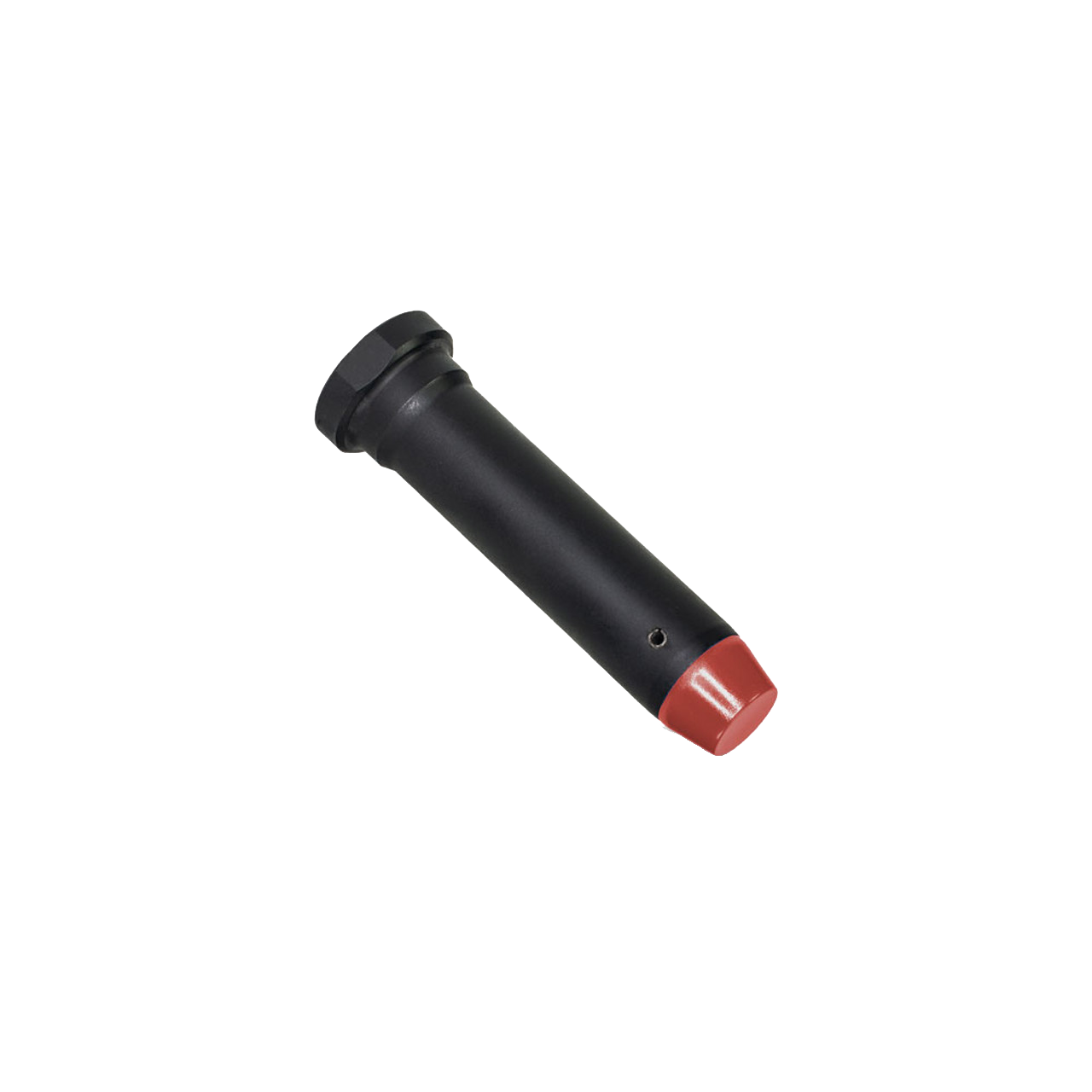

H3 Carbine Length Buffer

Manufacturer - KAK Industry

Notes: Buffer Weight: 5.5 oz

Pistol Grip‍

A1 Grip

Manufacturer - Linemount

Stock‍

CAR-15 Aluminum Stock

Manufacturer - Harrington & Richardson

Magazine

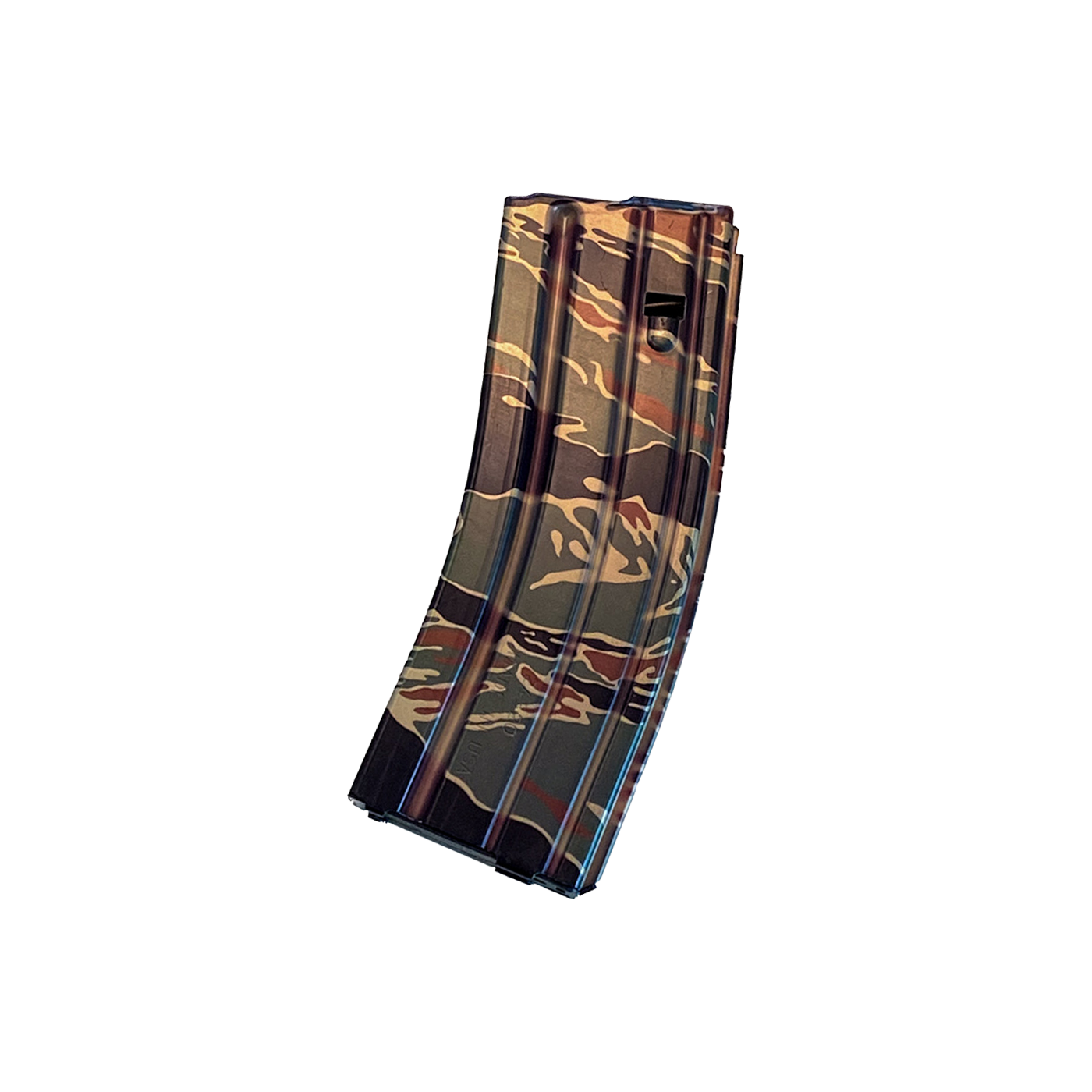

USGI Style 30-Round Magazine

Manufacturer - Brownells

Attachments / Accessories

Sling

USGI GP Strap & Paracord

Light

M600

Manufacturer - Surefire

Tools Used / Recommended Tools

Bench Vice

Notes: Needed for holding receivers in place during assembly.

Upper Receiver Rod

Notes: Keeps barrel secure while torquing barrel nut(very important), installing muzzle devices and keeps upper receiver stable while installing sights/optics.

Handguard Tool

Notes: Makes install & removal of handguards far easier on rifles with Slip & Delta rings.

Lower Receiver Vise Block

AR-15 Armorer's Wrench

Notes: Needed for barrel nut and buffer tube installs, helps with muzzle devices that are compatible.

Torque Wrench

Notes: Needed for installation of barrel nut.

Pin Starter Punch Set

Notes: Helps with installing trickier roll pins such as bolt catch or trigger guard.

Pin Punch Set

Center Punch Set

Notes: Needed for staking endplates / castle nuts on carbine buffer tubes.

Takedown Pin Install Tool

Notes: Greatly decreases the difficulty of installing front takedown pins without losing detents / springs.

3/16" Hex T-Handle Wrench

Notes: Allows easy access for removal & installation of pistol grips ensuring proper torque for installation.

Snap Ring Pliers

Notes: Needed for indexing snap ring that holds Slip / Delta ring while installing gas tube into upper receiver on milspec barrel nuts.

5.56 NATO Headspace Gauges

Notes: Used for ensuring proper chamber headspace between your bolt and barrel.

A list of parts and tools used can be found below. For those who want to build their own XM177E1.
